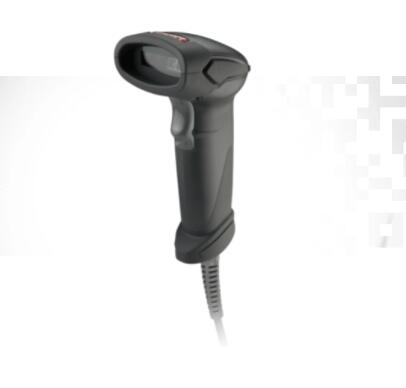

內建ZEBEX最先進的Ultrascan解碼科技，Z-3190可以每秒掃描高達330次的超強掃描性能，輕鬆解譯市面上絕大多數常見的一維條碼，包括GS1和DataBar。Z-3190設計有固實耐用的槍形握把、外形安全可靠，足以耐受嚴寒或高溫、衝撞或震動等各種極端考驗；系統內同樣內建ZEBEX獨家解碼技術和韌體，在各種情況下都能確實完美演繹。
? 32位元微型處理器與獨家Ultrascan解碼科技
? 支援GS1 DataBar解碼
? 類比影像擷取技術
? 以合成橡膠包覆握把，安全防護更徹底
? 32位元微型處理器與獨家Ultrascan解碼科技
? 支援GS1 DataBar解碼
? 類比影像擷取技術
? 以合成橡膠包覆握把，安全防護更徹底
產品規格
Light Source
617 nm visible red LED
Optical System
Linear CCD array
Microprocessor
32-bit
Depth of Field
4 mil: 30 – 90 mm
5 mil: 30 – 130 mm
7.5 mil: 10 – 190 mm
10 mil: 10 – 220 mm
13 mil: 20 – 320 mm
20 mil: 10 – 360 mm
Note: DOF may vary depending on environment condition and barcode quality.
5 mil: 30 – 130 mm
7.5 mil: 10 – 190 mm
10 mil: 10 – 220 mm
13 mil: 20 – 320 mm
20 mil: 10 – 360 mm
Note: DOF may vary depending on environment condition and barcode quality.
Min. Bar Width
3 mil
Scan Angle
42°
Pitch / Roll / Skew angle
±75° / ±25° / ±60°
Scan Rate
330 scans per second
Print Contrast
Min. 30% @ UPC/EAN 100%
Indicator
Beeper and LED
Programmable Operation
Beeper tone & volume
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
